    Horisontaalne freespink

    22 tootest

    Horisontaalne freespink ehk horisontaalne frees on mitmekülgne tööriist, mida saab kasutada erinevate detailide töötlemiseks. Horisontaalsetel freespinkidel on spindel paigutatud töölauaga paralleelselt ning seda kasutatakse protsessides, kus on oluline laastude moodustamine. Tänu horisontaalsele disainile muudab gravitatsioon laastude eemaldamise lihtsamaks.

    Horisontaalsel freespingil on ülimalt stabiilne disain, mis väldib paindeprobleeme ning annab teile praktiliselt ruudukujulise töötlemispinna.

    Sorteeri

    General

    Seeria

    Travels

    X Axis Travel distance (mm)

    Feed rates

    Main spindle

    Table

    Capacity

    DHF 8000

    DHF 8000

    • Travels - X Axis Travel distance (mm): 1450
    • Travels - Y Axis Travel distance (mm): 1200
    • Travels - Z Axis Travel distance (mm): 1500
    • Max. Turning Diameter (mm): 1400
    DHF 8000

    DHF 8000

    • Travels - X Axis Travel distance (mm): 1450
    • Travels - Y Axis Travel distance (mm): 1200
    • Travels - Z Axis Travel distance (mm): 1500
    • Max. Turning Diameter (mm): 1400
    HC II Series

    HC II Series

    HM 1000

    HM 1000

    • Travels - X Axis Travel distance (mm): 2100
    • Travels - Y Axis Travel distance (mm): 1250
    • Travels - Z Axis Travel distance (mm): 1250
    HM 1250

    HM 1250

    • Travels - X Axis Travel distance (mm): 2100
    • Travels - Y Axis Travel distance (mm): 1500
    • Travels - Z Axis Travel distance (mm): 1500
    HM 1250W

    HM 1250W

    • Travels - X Axis Travel distance (mm): 2100
    • Travels - Y Axis Travel distance (mm): 1400
    • Travels - Z Axis Travel distance (mm): 1400

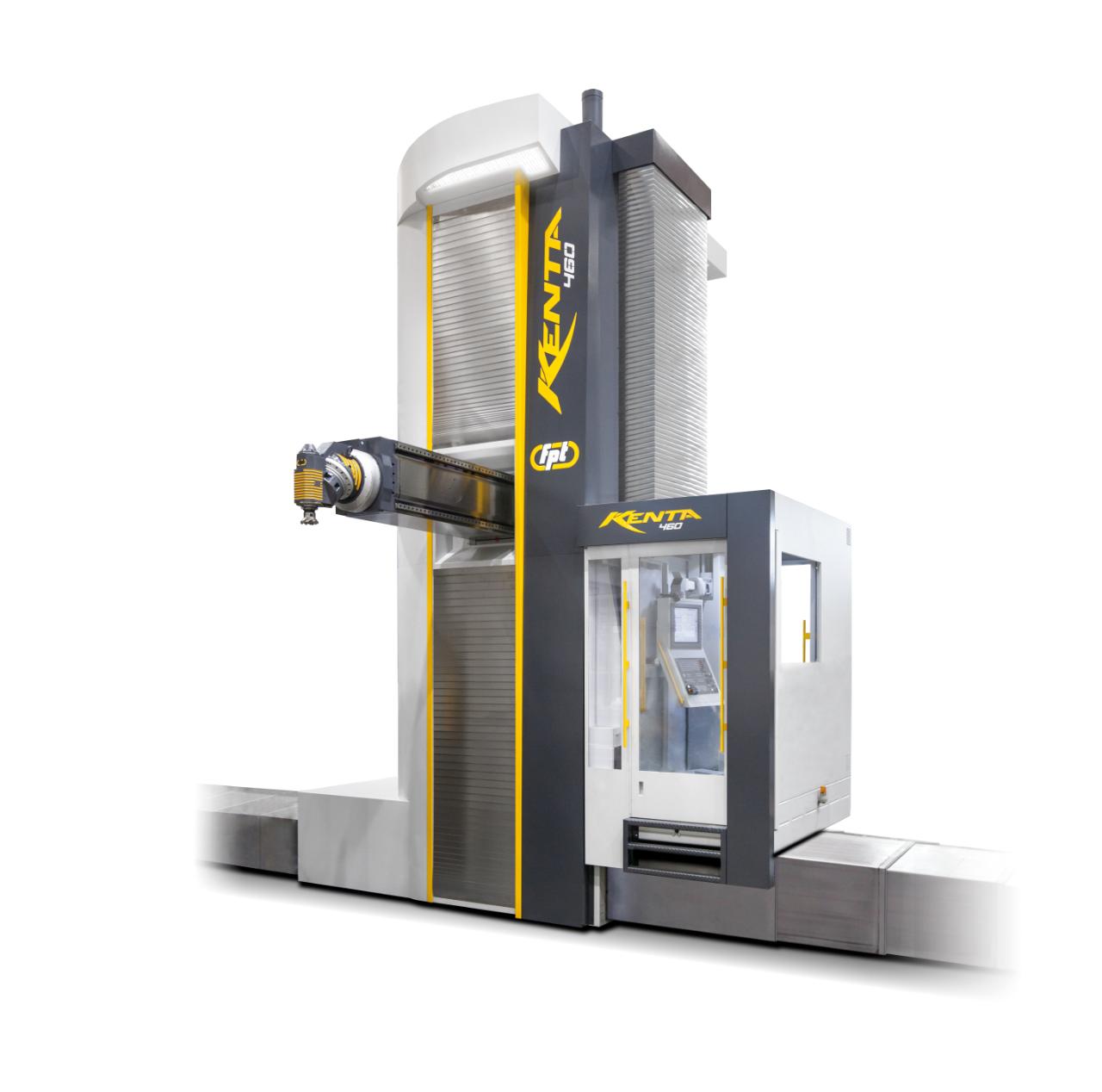

    Kenta

    Kenta

    • Travels - X Axis Travel distance (mm): 6000
    • Travels - Y Axis Travel distance (mm): 2000
    • Travels - Z Axis Travel distance (mm): 5200
    NHM 5000

    NHM 5000

    • Travels - X Axis Travel distance (mm): 800
    • Travels - Y Axis Travel distance (mm): 700
    • Travels - Z Axis Travel distance (mm): 850
    NHM 5000

    NHM 5000

    • Travels - X Axis Travel distance (mm): 800
    • Travels - Y Axis Travel distance (mm): 700
    • Travels - Z Axis Travel distance (mm): 850
    NHM 6300

    NHM 6300

    • Travels - X Axis Travel distance (mm): 1050
    • Travels - Y Axis Travel distance (mm): 850
    • Travels - Z Axis Travel distance (mm): 1000
    NHM 8000

    NHM 8000

    • Travels - X Axis Travel distance (mm): 1400
    • Travels - Y Axis Travel distance (mm): 1050
    • Travels - Z Axis Travel distance (mm): 1200
    NHP 4000

    NHP 4000

    • Travels - X Axis Travel distance (mm): 560
    • Travels - Y Axis Travel distance (mm): 640
    • Travels - Z Axis Travel distance (mm): 660
    NHP 5000

    NHP 5000

    • Travels - X Axis Travel distance (mm): 730
    • Travels - Y Axis Travel distance (mm): 730
    • Travels - Z Axis Travel distance (mm): 880
    NHP 5500 2nd

    NHP 5500 2nd

    • Travels - X Axis Travel distance (mm): 800
    • Travels - Y Axis Travel distance (mm): 750
    • Travels - Z Axis Travel distance (mm): 900
    NHP 6300

    NHP 6300

    • Travels - X Axis Travel distance (mm): 1050
    • Travels - Y Axis Travel distance (mm): 900
    • Travels - Z Axis Travel distance (mm): 1000
    NHP 8000

    NHP 8000

    • Travels - X Axis Travel distance (mm): 1400
    • Travels - Y Axis Travel distance (mm): 1200
    • Travels - Z Axis Travel distance (mm): 1370

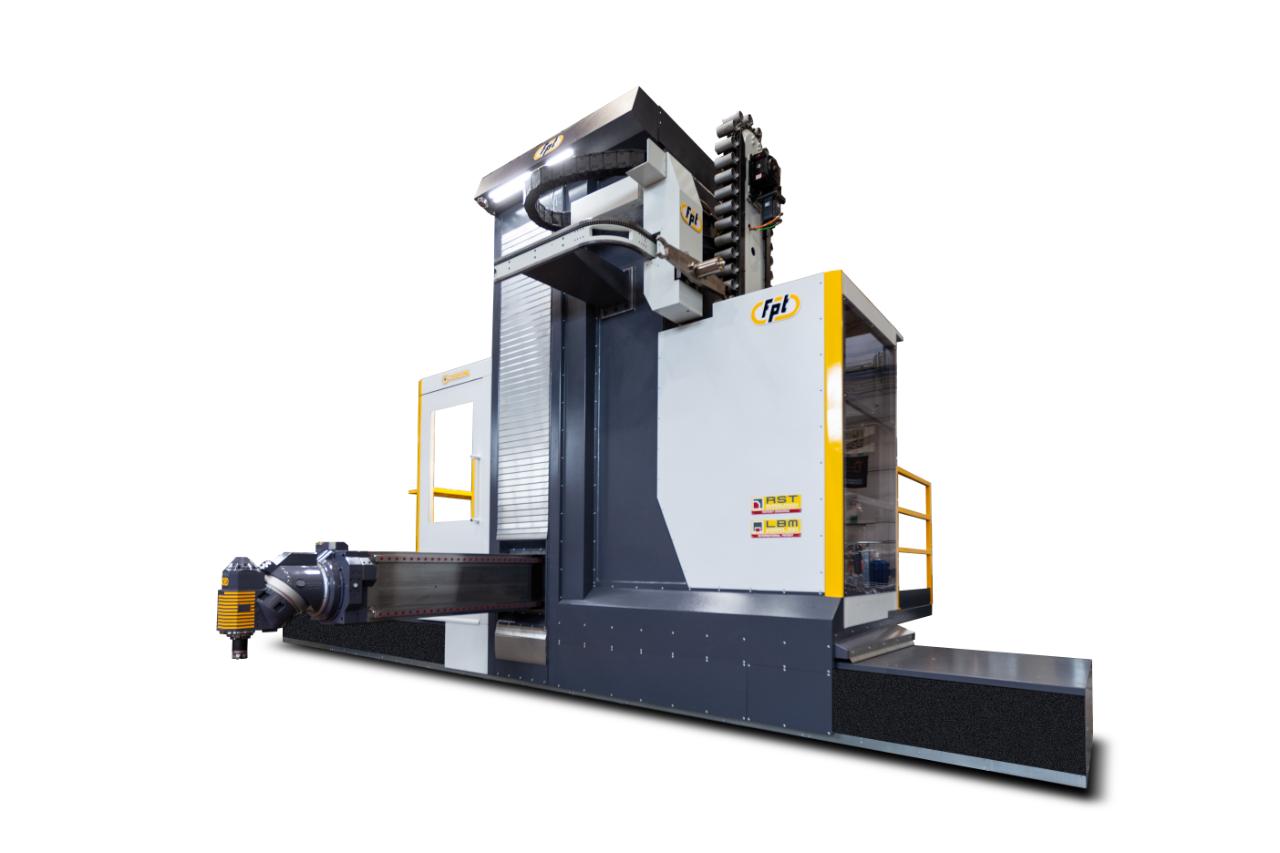

    Origin 300/400

    Origin 300/400

    • Travels - X Axis Travel distance (mm): 4000
    • Travels - Y Axis Travel distance (mm): 1600
    • Travels - Z Axis Travel distance (mm): 4500

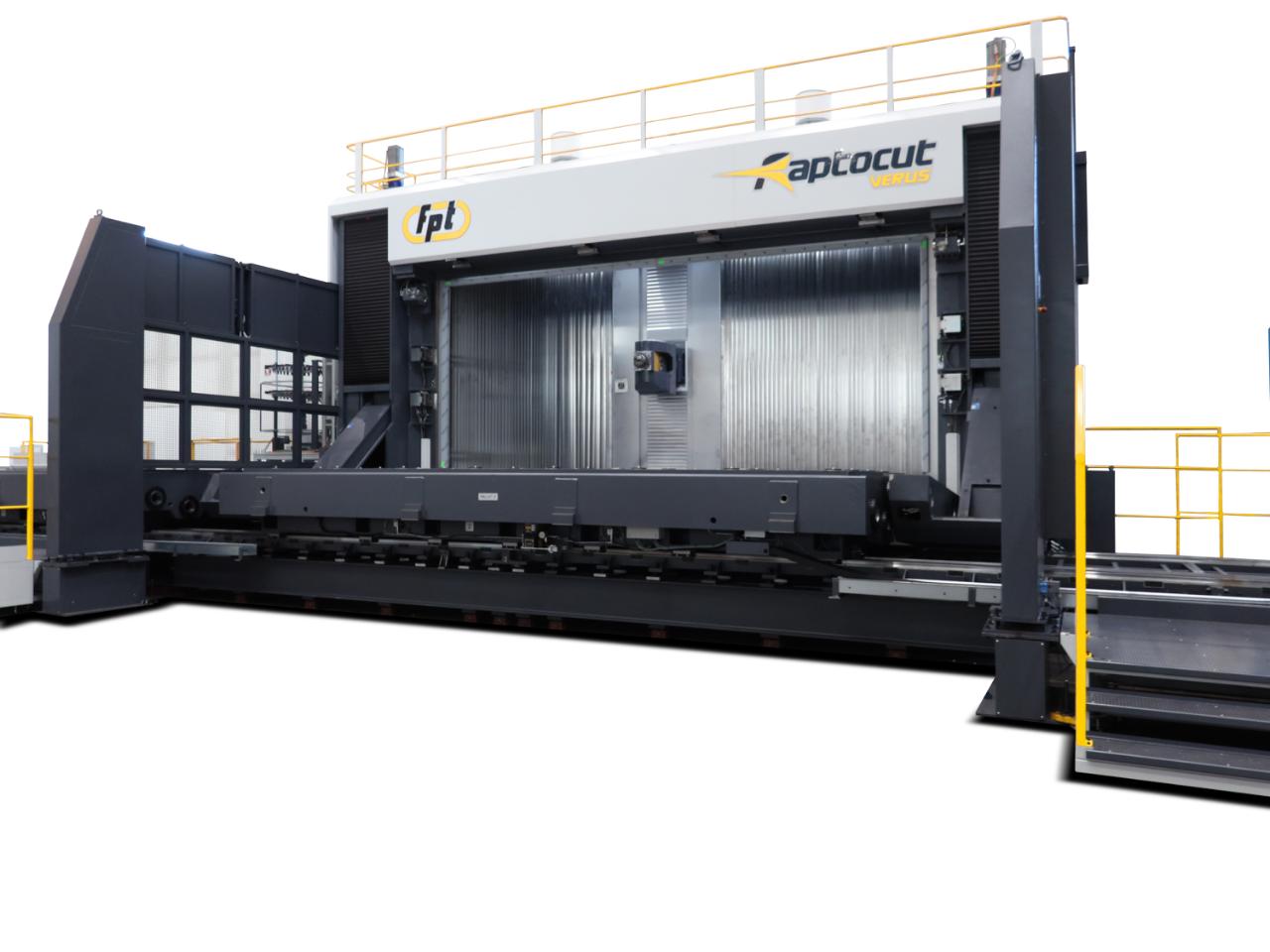

    Raptocut

    Raptocut

    • Travels - X Axis Travel distance (mm): 7000
    • Travels - Y Axis Travel distance (mm): 1000
    • Travels - Z Axis Travel distance (mm): 2500

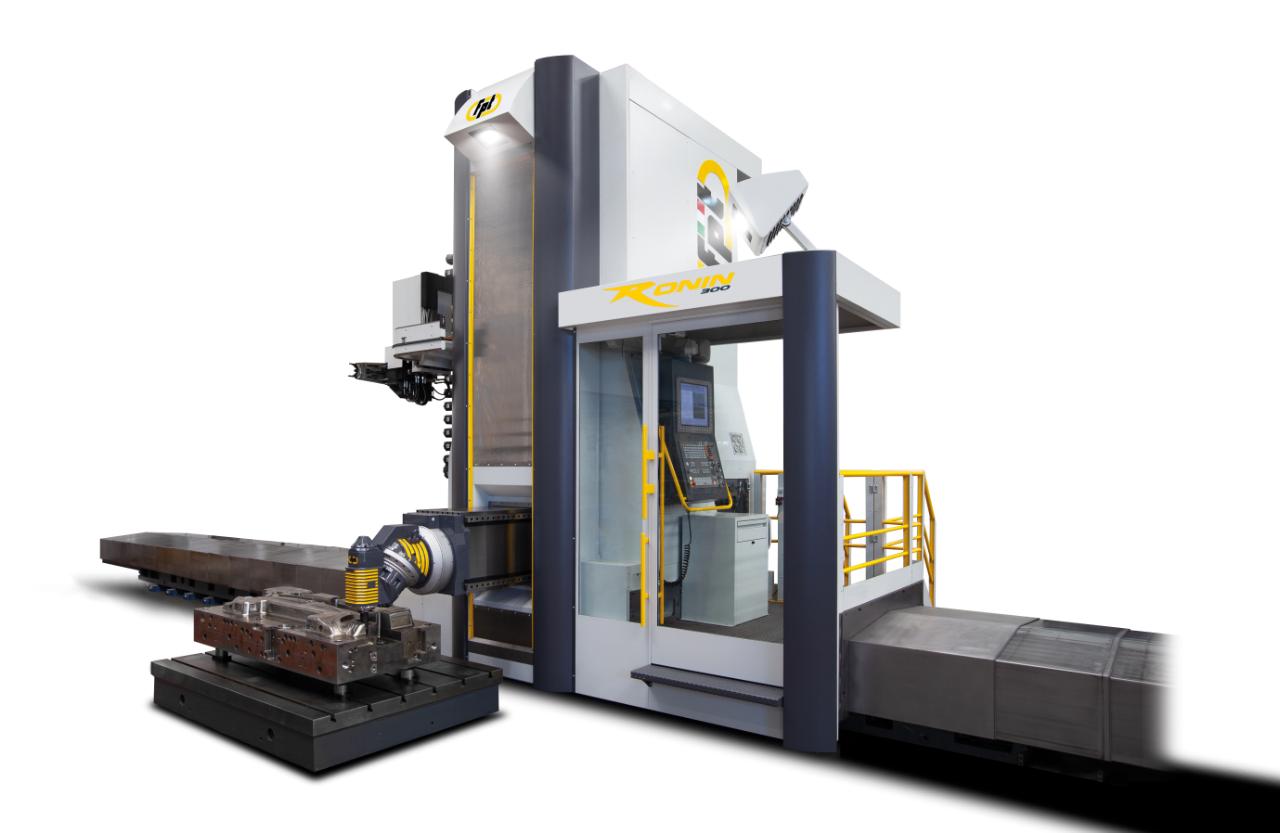

    Ronin 300/400

    Ronin 300/400

    • Travels - X Axis Travel distance (mm): 4000
    • Travels - Y Axis Travel distance (mm): 1800
    • Travels - Z Axis Travel distance (mm): 4500

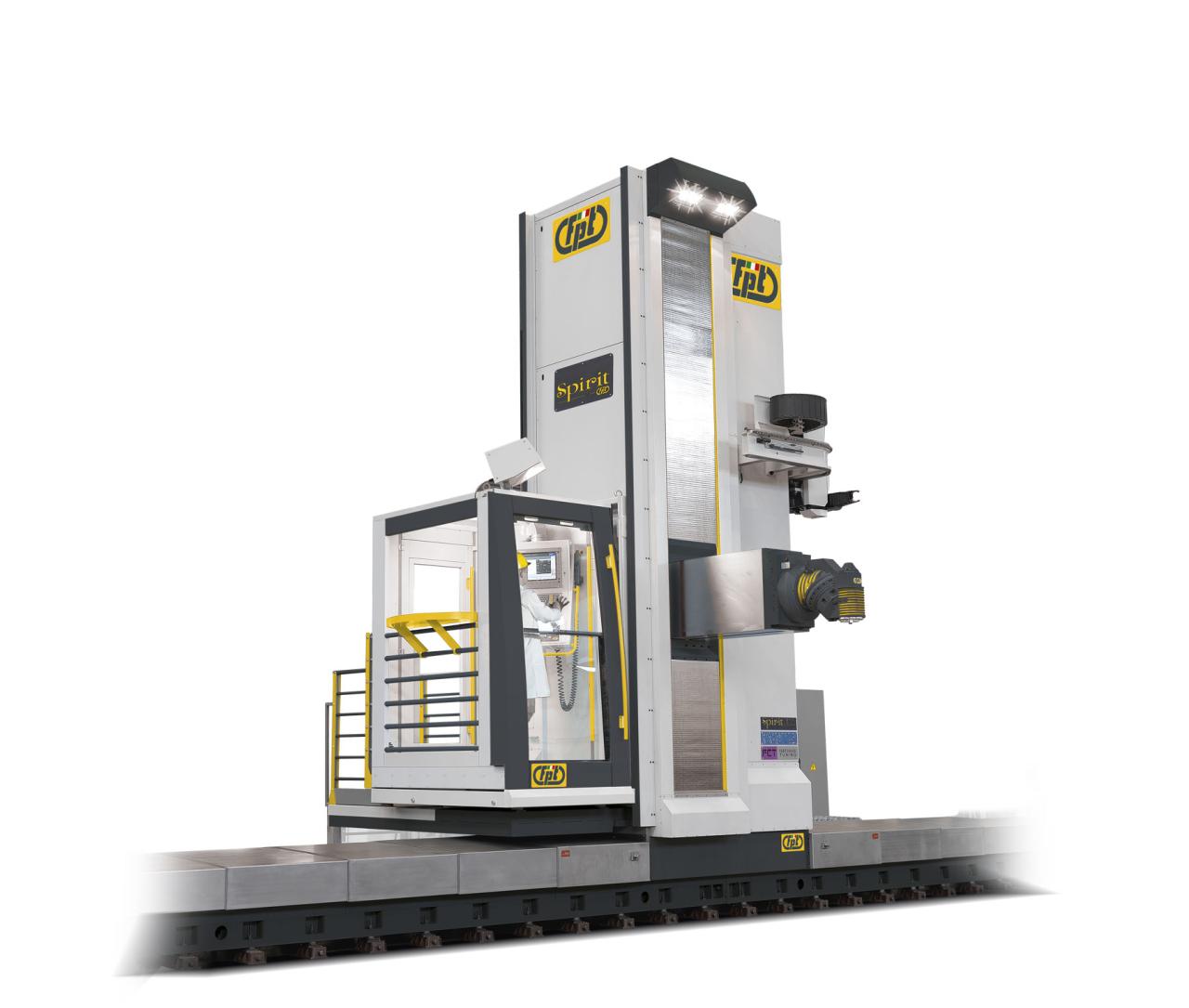

    Spirit 100

    Spirit 100

    • Travels - X Axis Travel distance (mm): 6000
    • Travels - Y Axis Travel distance (mm): 1500
    • Travels - Z Axis Travel distance (mm): 4000

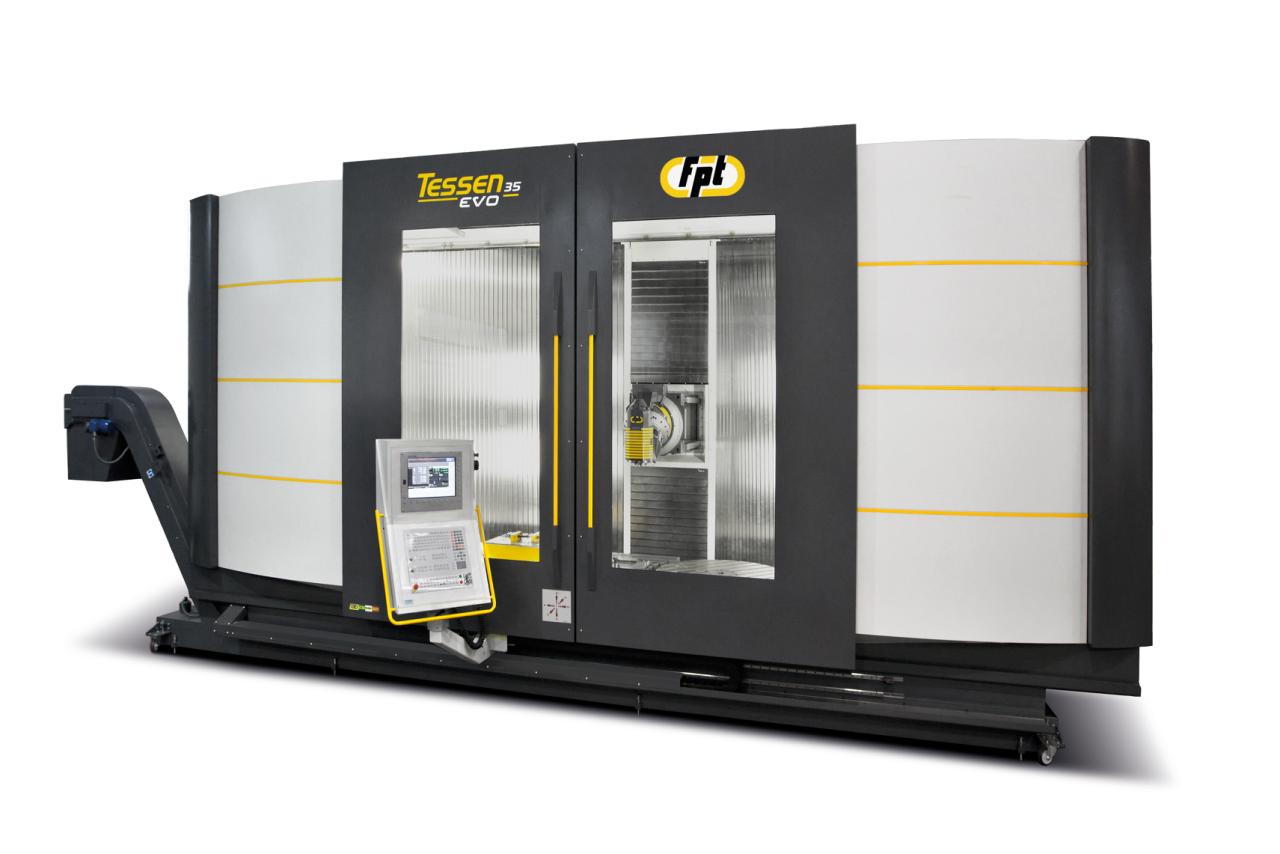

    Tessen EVO

    Tessen EVO

    • Travels - X Axis Travel distance (mm): 5000
    • Travels - Y Axis Travel distance (mm): 1200
    • Travels - Z Axis Travel distance (mm): 1500

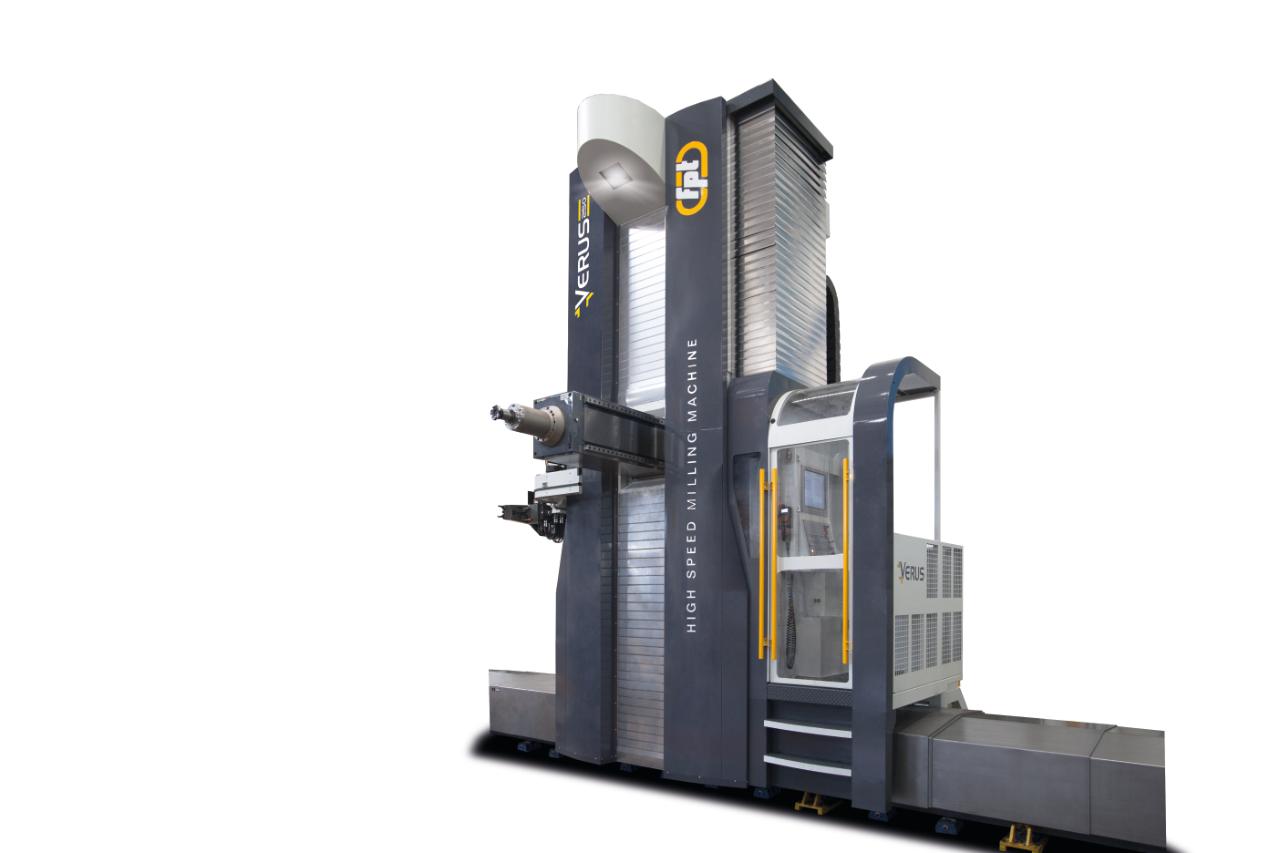

    Verus 250/360

    Verus 250/360

    • Travels - X Axis Travel distance (mm): 4000
    • Travels - Y Axis Travel distance (mm): 1600
    • Travels - Z Axis Travel distance (mm): 3600
    22 toodet kuvatud 22 tootest

    Horisontaalne freespink on alati 4-teljeline ning mõnedel pinkidel on ka sisseehitatud pöördlaud, mis võimaldab freesida erinevate nurkade all. Sellega saate töödelda erinevate nurkade all ja freesida sealt, kus soovite.

    Horisontaalne freespink on tihtipeale ilmselge valik, kui teil on vaja töötada ülimalt raskest materjalist valmistatud suurte projektide kallal. Freespingis peate vahetama terve aluse - kogu tasapinna - ning sisestama uue töödeldava detaili. Tavaliselt on horisontaalsetel freesimispinkidel vähemalt kaks alust, mis võimaldab erinevaid võimalusi mehitamata tööks.
