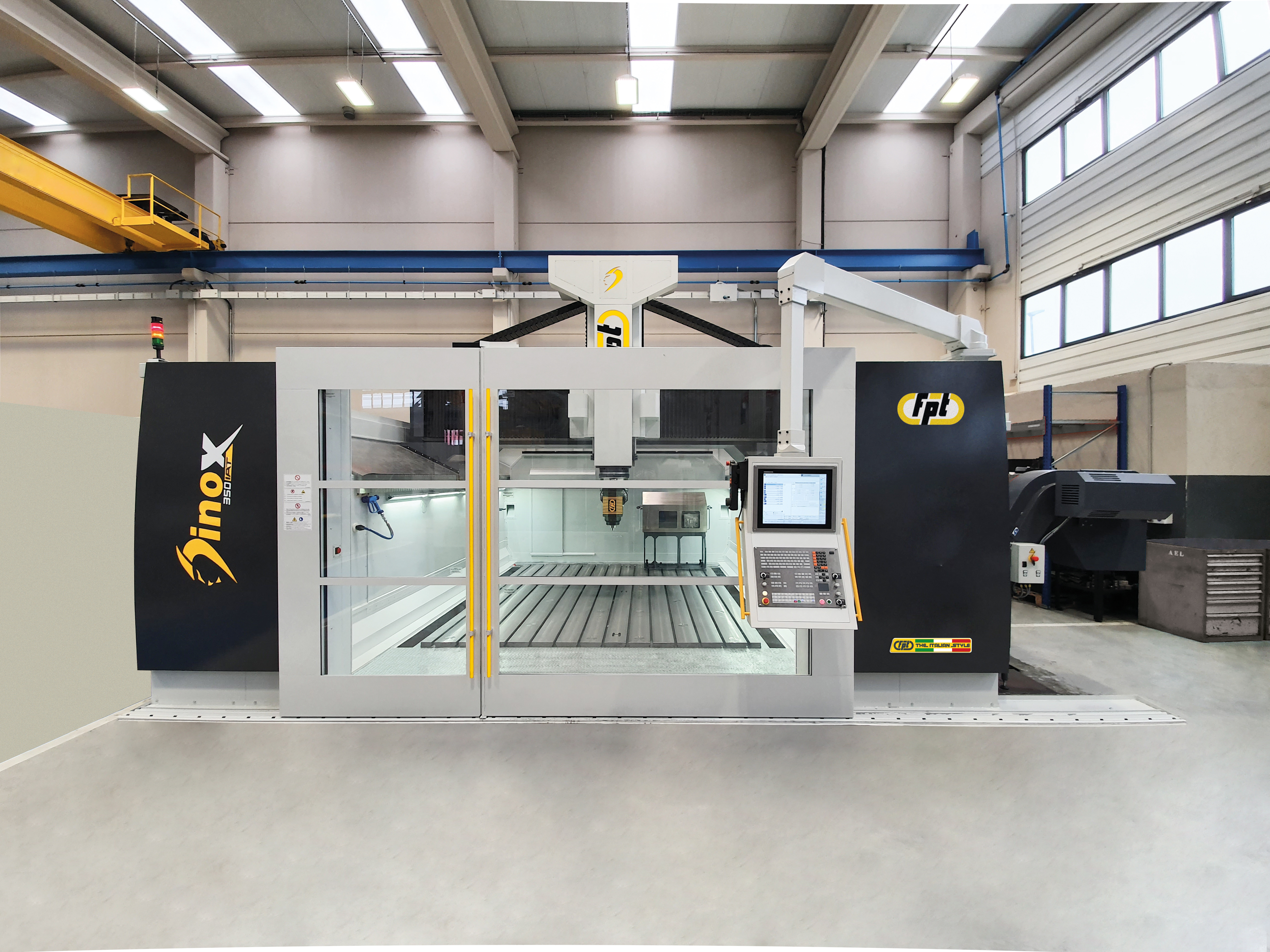

    Dinox 350 IAT

    Vertical Milling Machine

    • Large-format capability: Designed to handle very large and heavy components with accuracy and stability.
    • Thermal precision with IAT: Intelligent system actively compensates temperature changes, guaranteeing repeatable accuracy.
    • Autonomy at scale: Tool magazines up to 300+ tools minimize downtime and extend continuous production.

    Highlights

    • Travels - X Axis Travel distance (mm): 6000
    • Travels - Y Axis Travel distance (mm): 3500
    • Travels - Z Axis Travel distance (mm): 1500

    Seeria tutvustus

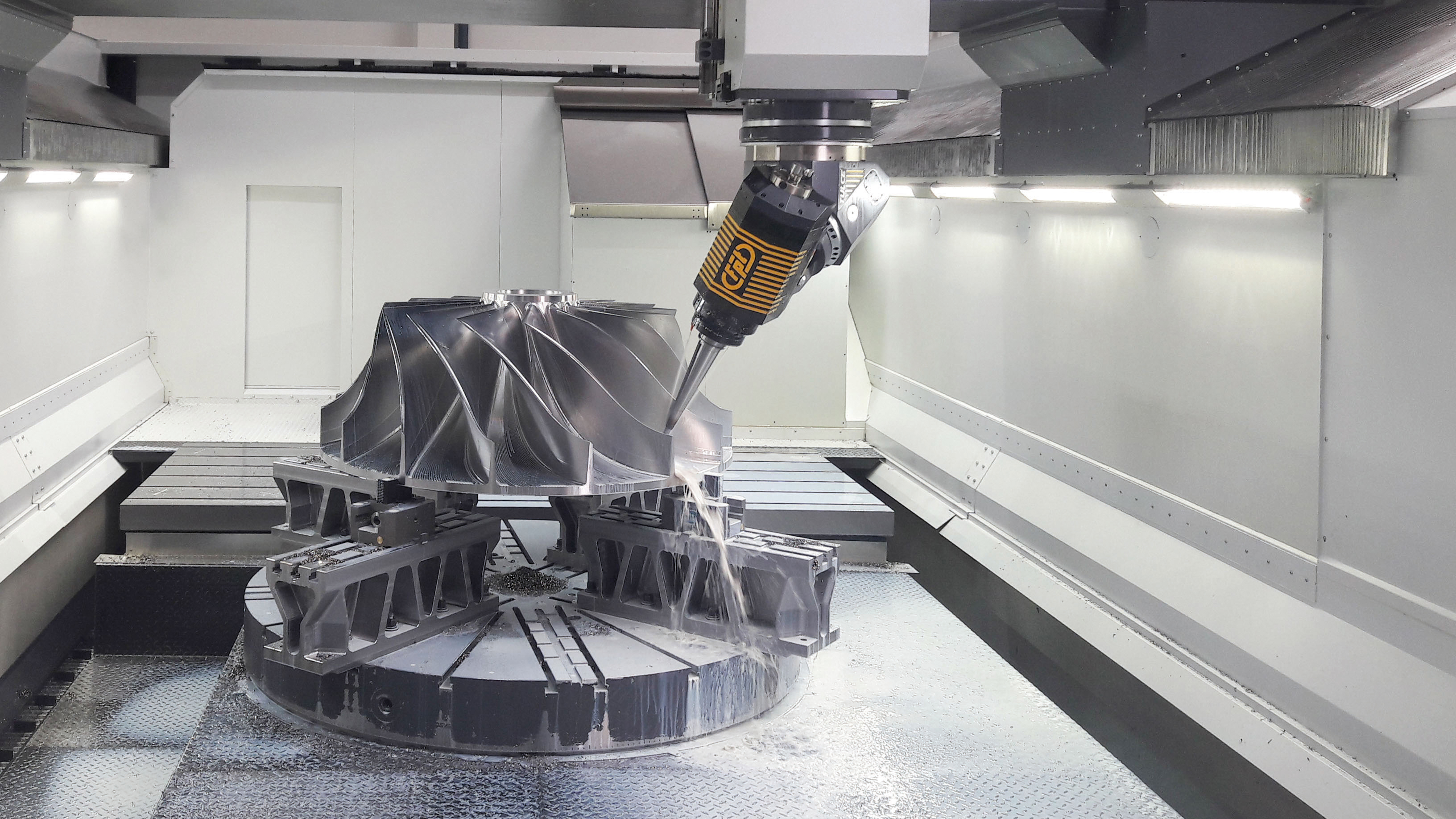

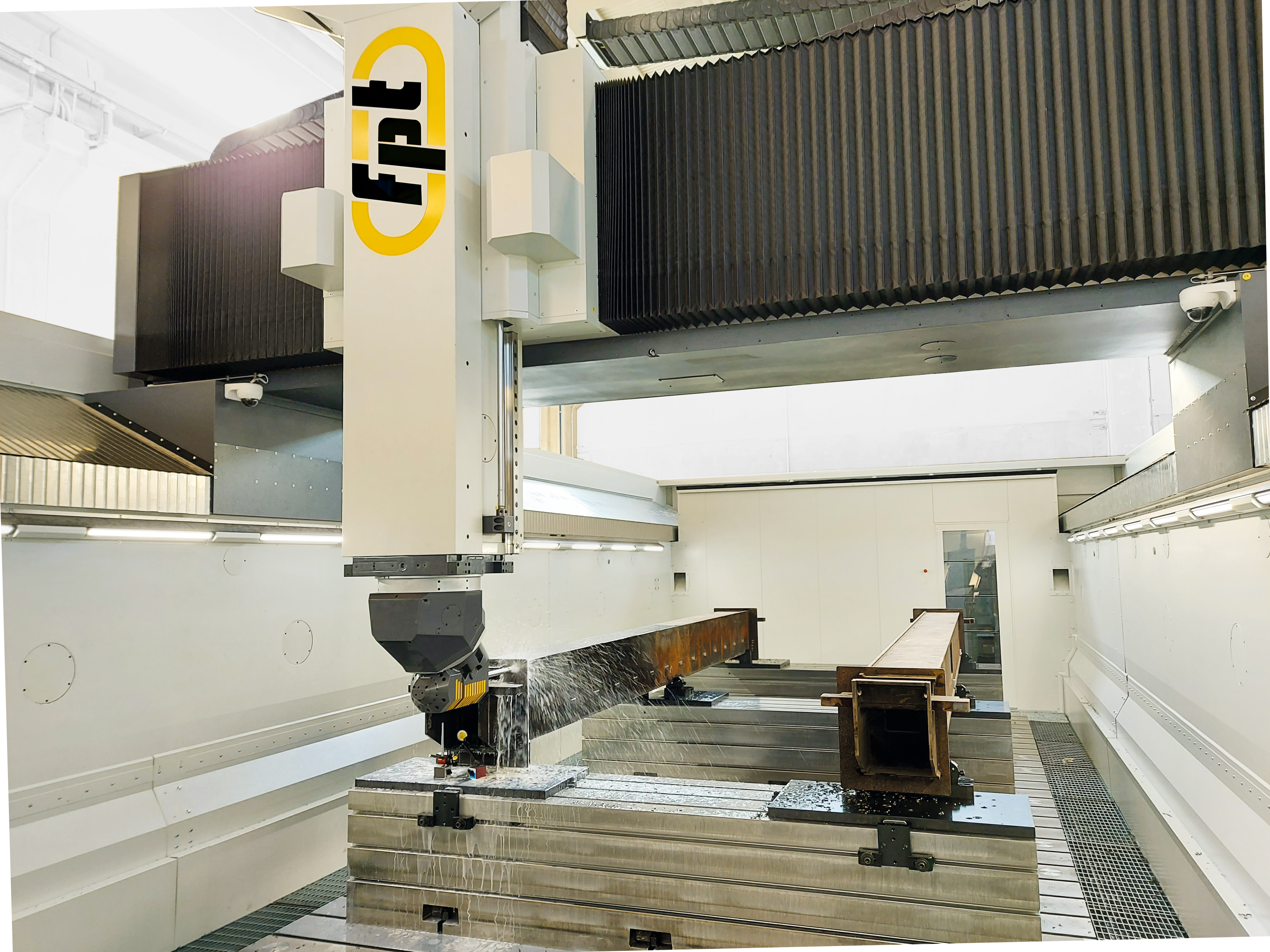

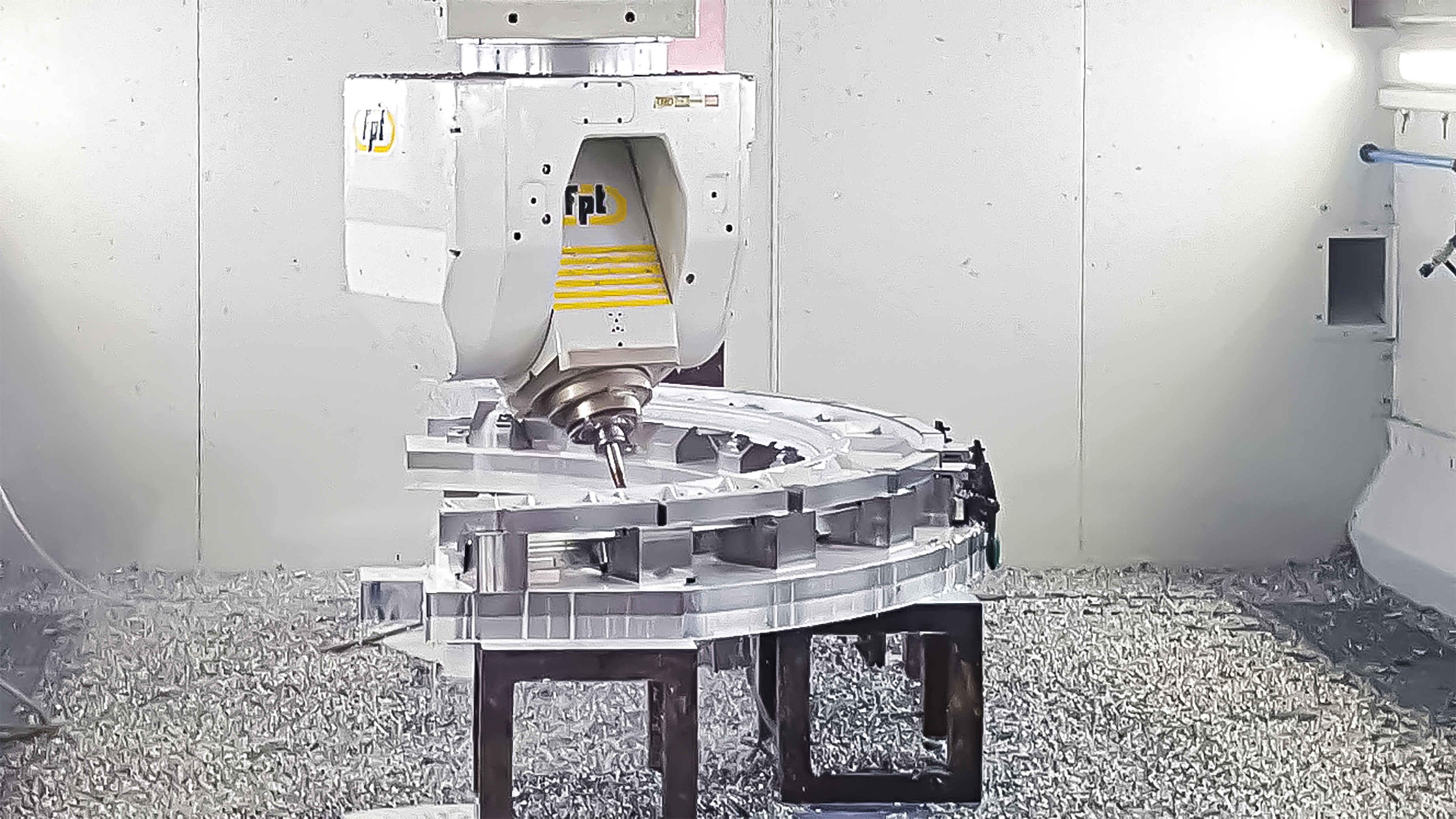

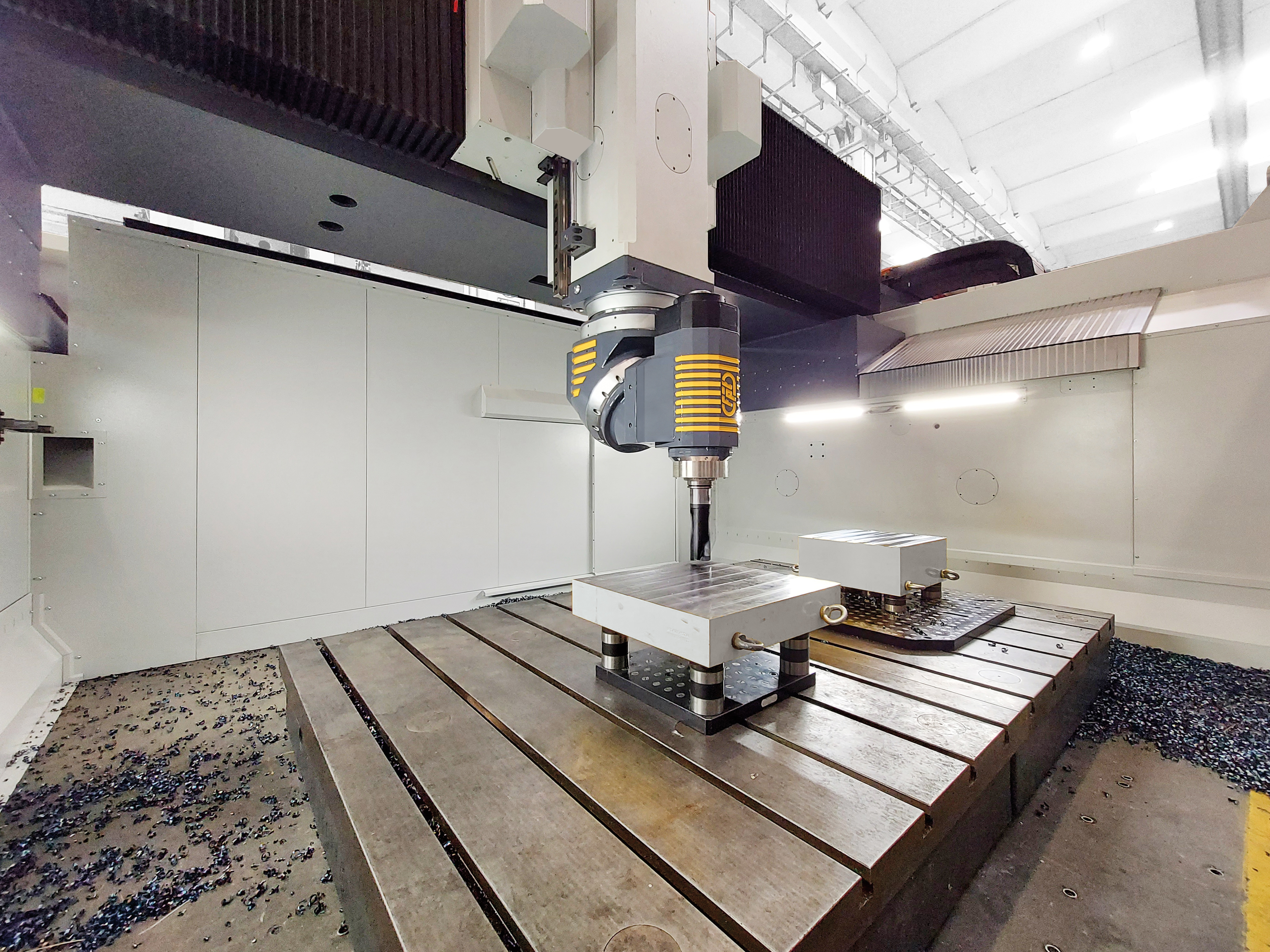

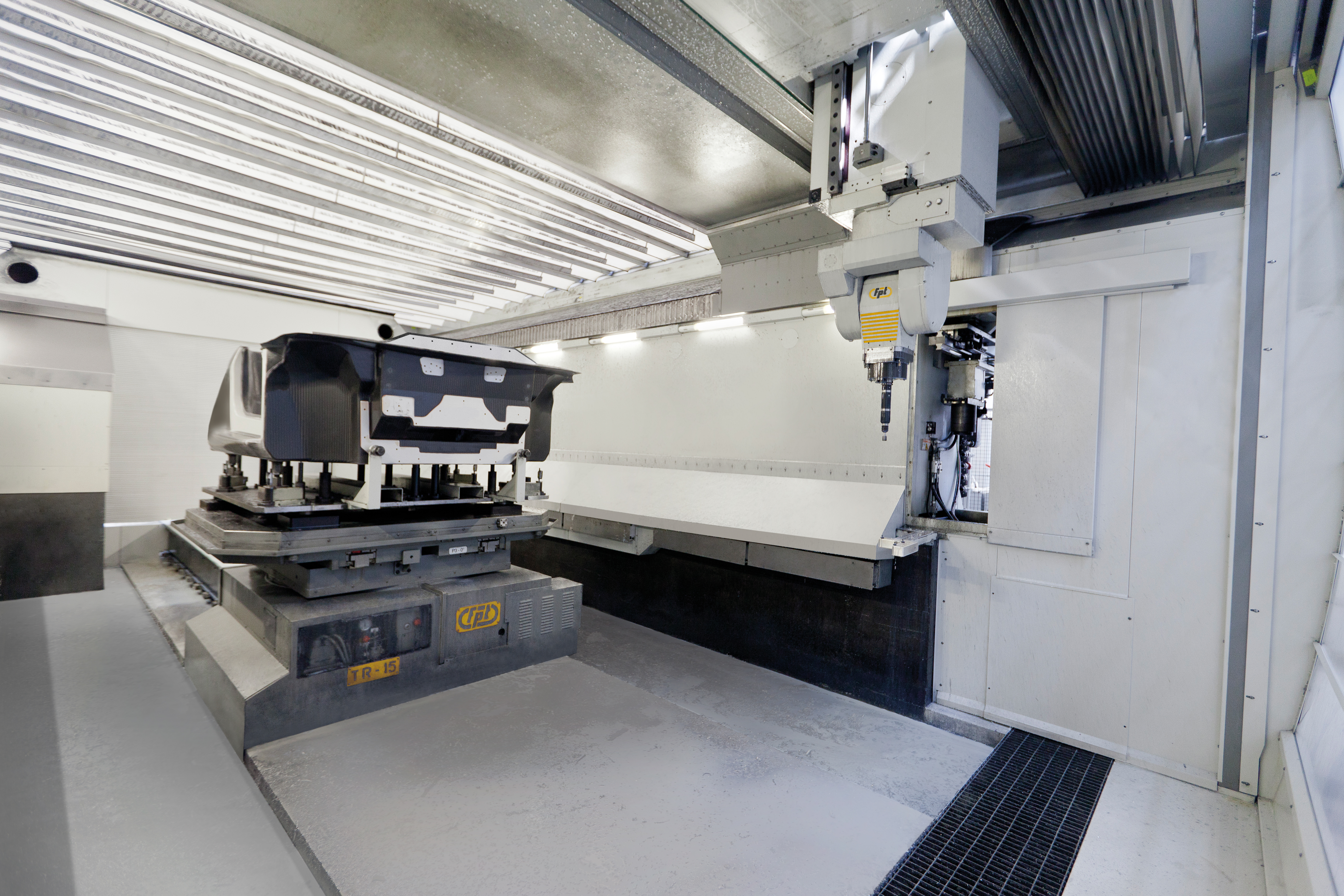

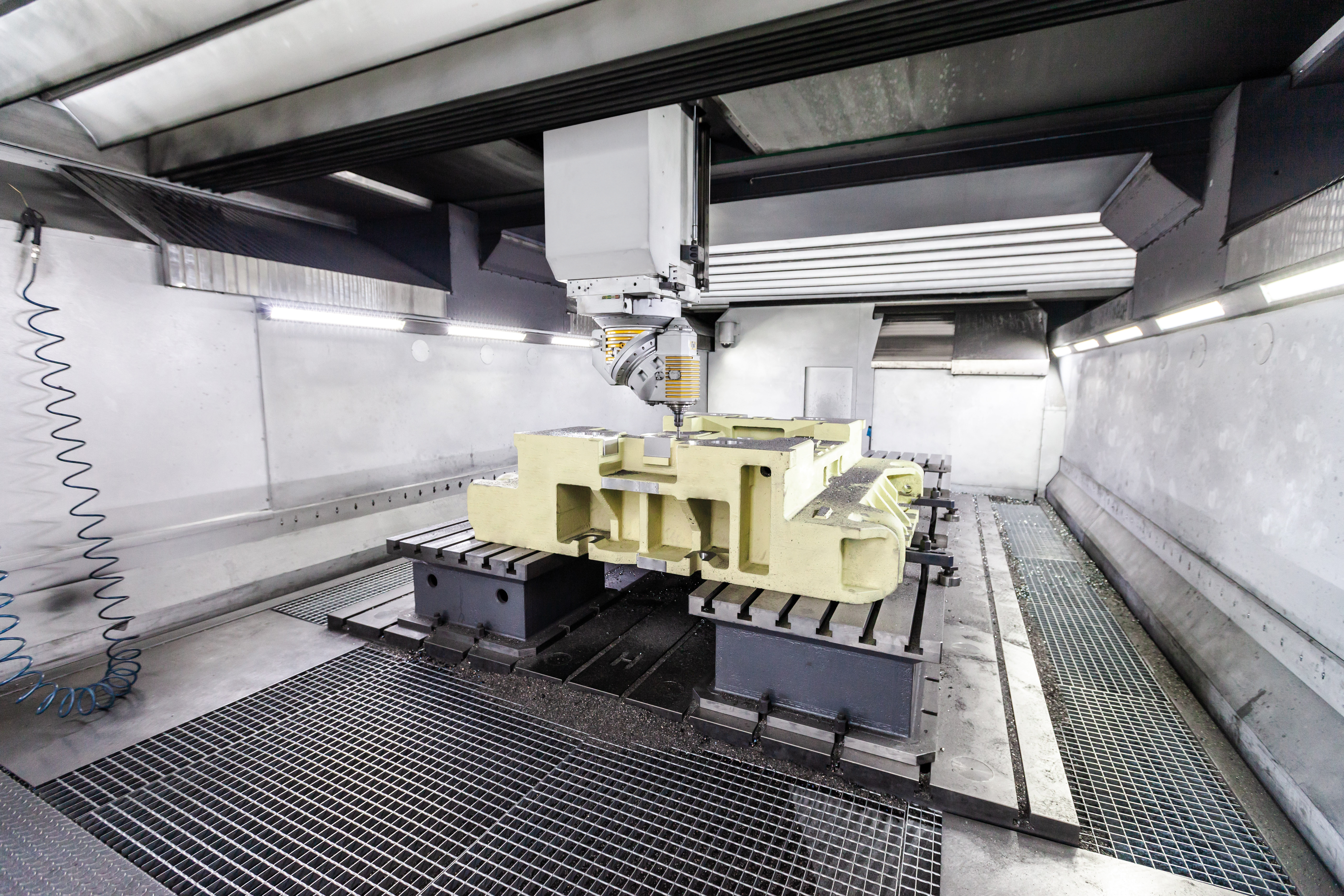

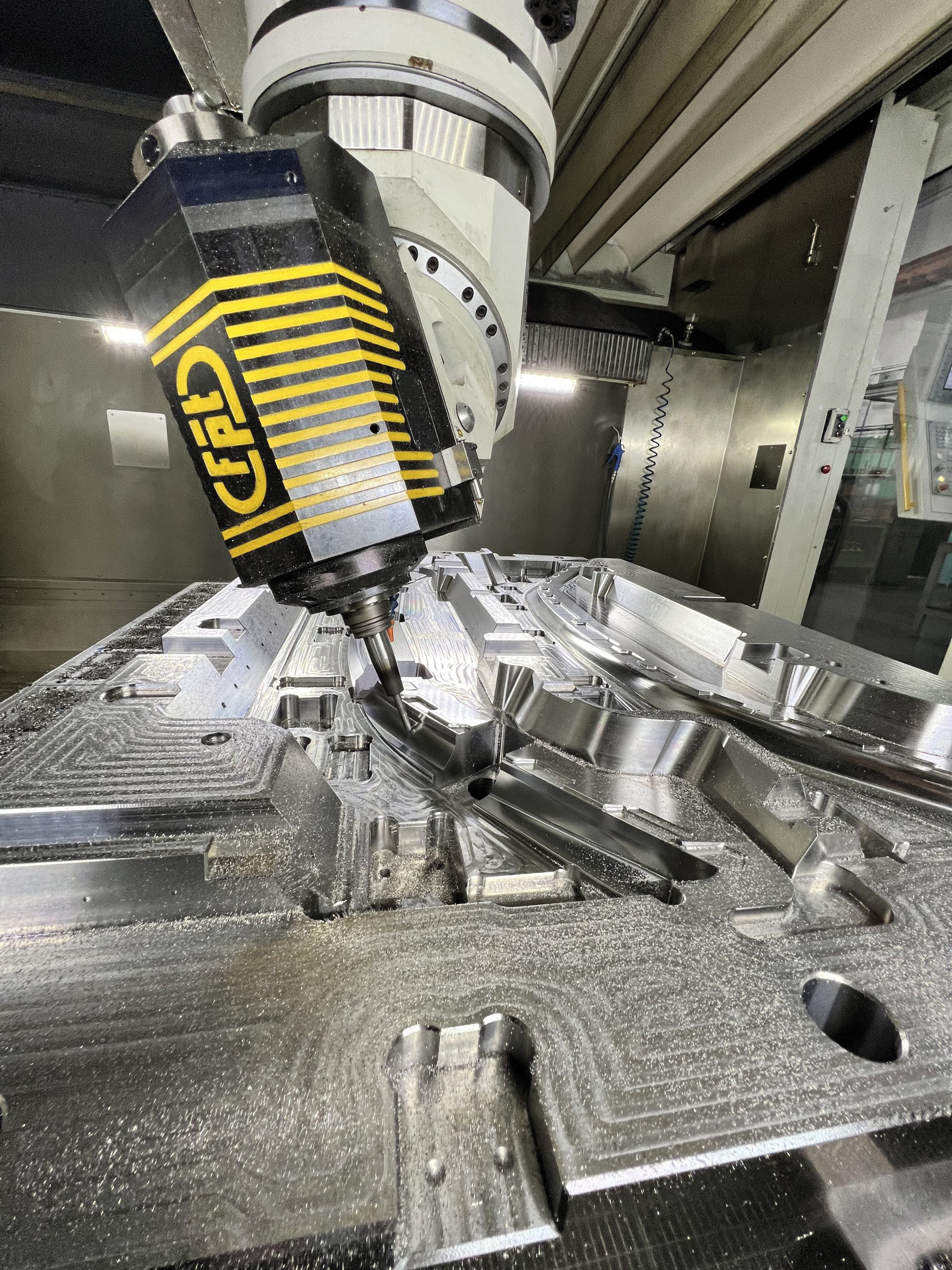

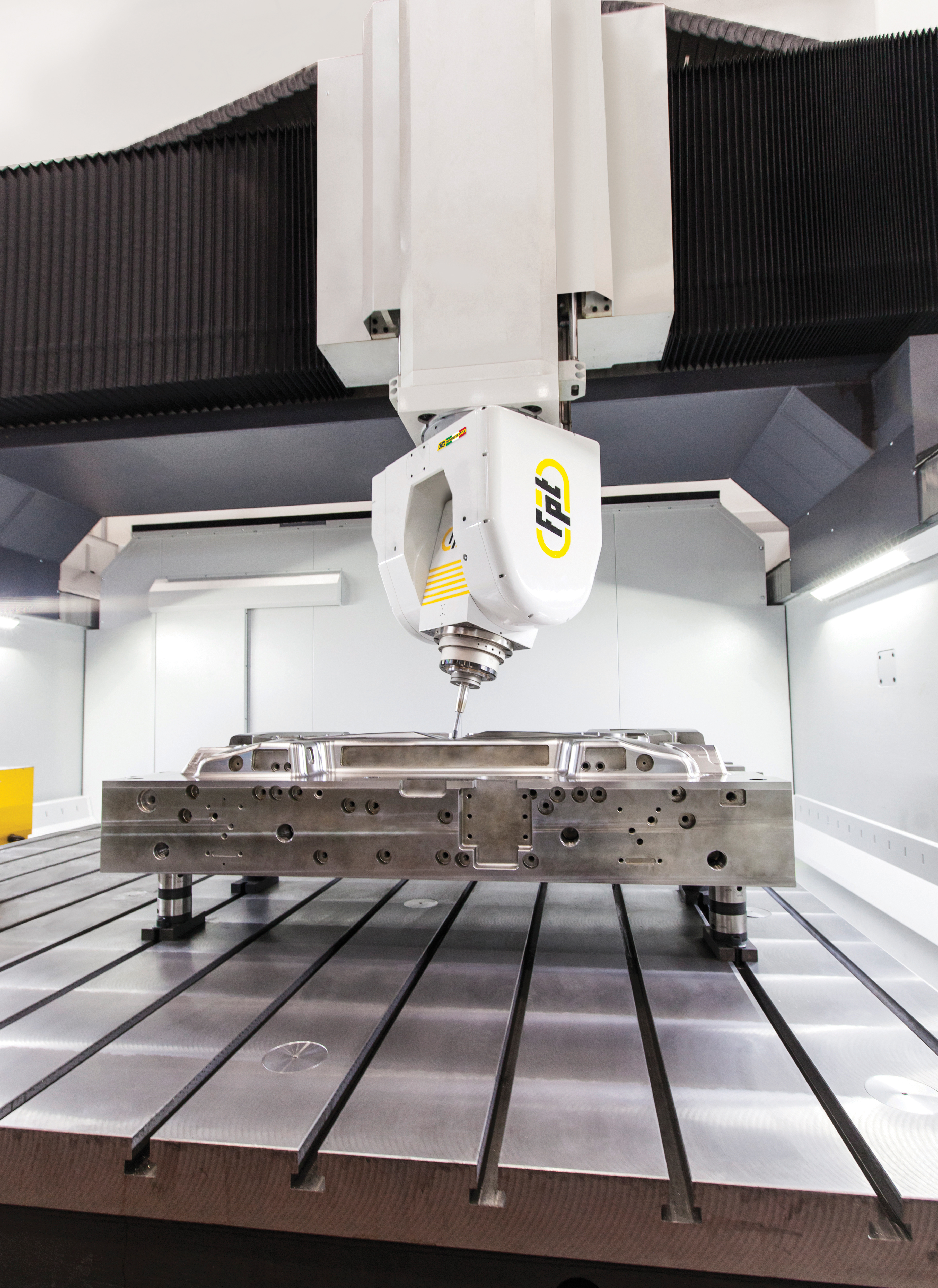

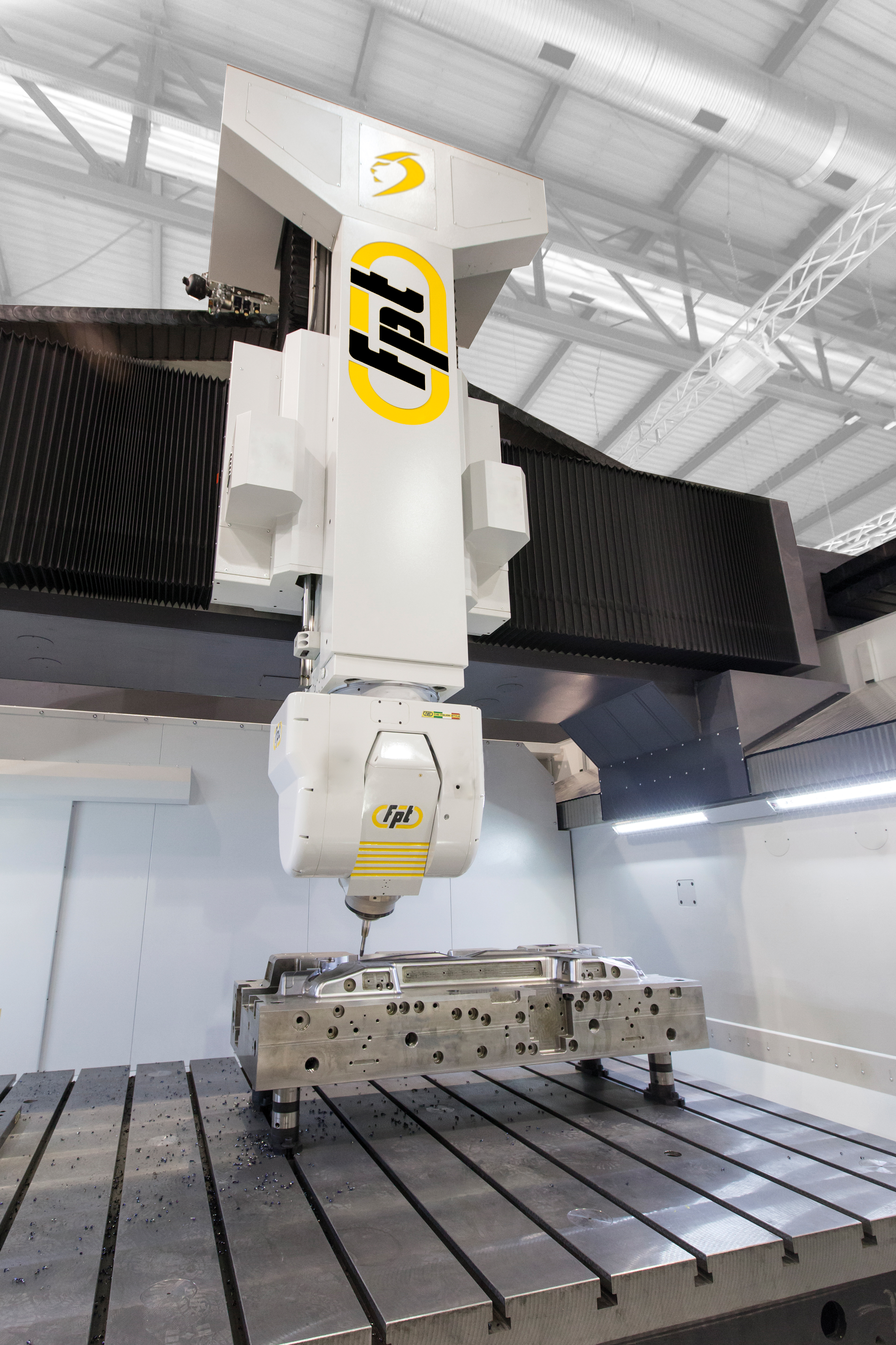

    The FPT Dinox 350 IAT is a large-format vertical milling machine designed for 5-axis precision machining of oversized components. Featuring a gantry-type moving crossbeam architecture, the Dinox 350 IAT combines heavy-duty rigidity with high-speed performance, making it equally effective in roughing and finishing operations. Its IAT – Intelligent Active Thermal control system ensures dimensional stability by compensating for environmental and operational temperature variations.
    Optimized using advanced FEM analysis, the structure delivers outstanding stiffness and vibration damping, while linear motor drives provide smooth, precise axis movements. With tool magazine capacities of up to 300+ tools, the Dinox 350 IAT supports extended autonomous machining cycles, maximizing uptime and efficiency.

    Ideal For
    The Dinox 350 IAT is built for aerospace, energy, automotive, and heavy engineering industries, where large-part 5-axis machining demands the perfect balance of rigidity, thermal stability, and productivity.

    Travels

    Travels - X Axis Travel distance (mm) 6000
    Travels - Y Axis Travel distance (mm) 3500
    Travels - Z Axis Travel distance (mm) 1500
    Travels - X Axis Rapid Traverse (m/min) 50
    Travels - Y Axis Rapid Traverse (m/min) 50
    Travels - Z Axis Rapid Traverse (m/min) 50

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
